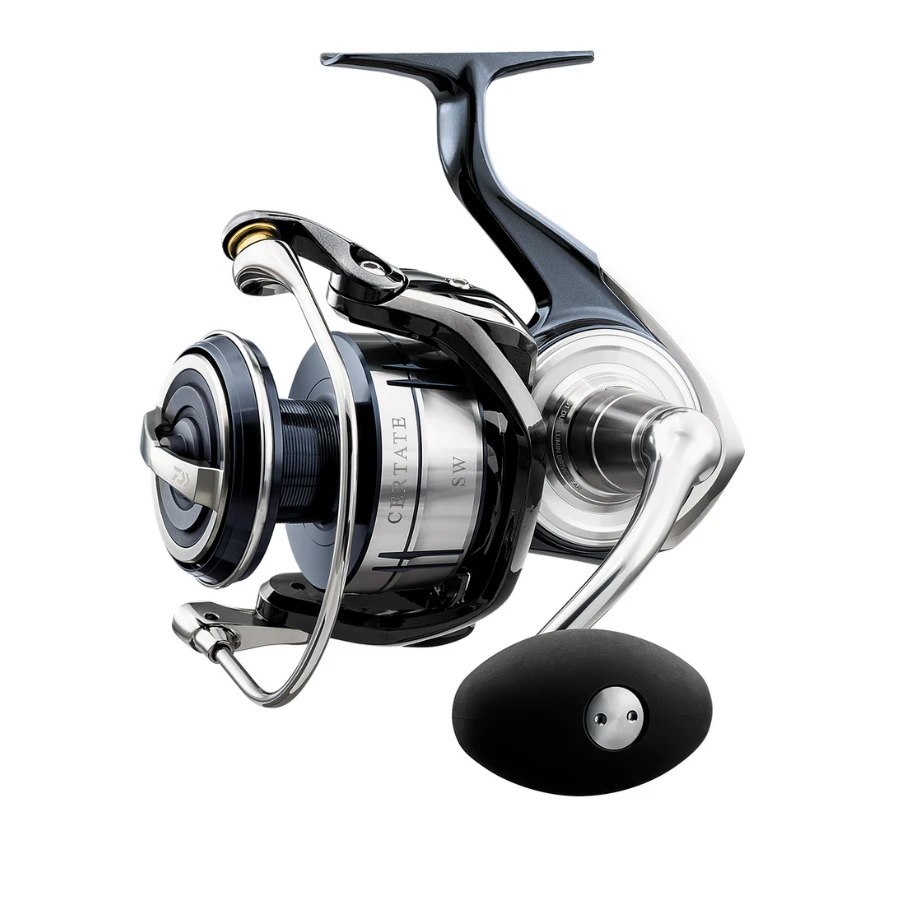

DAIWA CERTATE SW SPINNING REEL

DAIWA CERTATE SW SPINNING REEL

MONOCOQUE (MQ)

MQ Body takes reel design to the next level. The MQ system does not require a body cover, instead using an engine plate to screw directly to the body. Eliminating the need for screws to hold a body cover in place. MQ body improves the strength of the reel, it also improves the water-resistance of the body and allows a larger diameter drive gear to be installed.

AIR BAIL

Daiwa’s innovative bail design features a hollow tubular stainless steel bail that delivers maximum rigidity and strength with minimum weight. Featuring a smooth protrusion-free design and construction line easily slides unencumbered along the Air Bail towards the line roller for trouble free line control.

AIR ROTOR

Lighter, stronger and more balanced than any rotor system that’s come before, ‘Air Rotor’ delivers a great leap forward in rotor design and function and delivers the ultimate reel sensitivity and rotational balance.

ATD DRAG

Daiwa’s Automatic Tournament Drag uses an improved drag grease that exhibits a low viscosity at rest, yet becomes more viscous immediately after drag start up. This reduces initial drag start-up inertia and combined with the structural changes of the ATD Drag System results in a smoother drag from the initial hook up.

CERTATE REEL SPECIFICATIONS:

MODEL	WEIGHT (oz)	GEAR RATIO	MONO CAPACITY (IB/YDS)	BRAID CAPACITY (IB/YDS)	INCHES PER CRANK	BALL BEARINGS	MAX DRAG

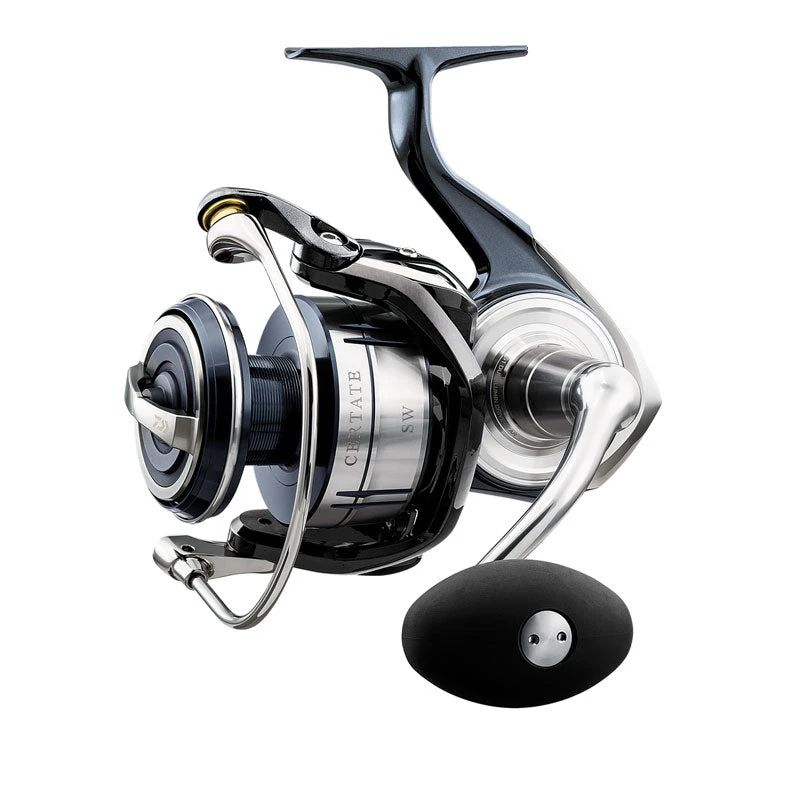

CERTATESWG8000-H	22oz	5.8:1	16/330 20/280	40/330 50/280	43.7in	8BB (1MBB 1CRBB 5BB) + 1RB	55LB
CERTATESWG10000-H	22.2oz	5.8:1	20/330 25/280	50/330 65/280	46.6in	8BB (1MBB 1CRBB 5BB) + 1RB	55LB
CERTATESWG14000-XH	22.4oz	6.2:1	25/330 30/290	65/330 80/280	52.9in	8BB (1MBB 1CRBB 5BB) + 1RB	55LB
CERTATESWG18000-H	30oz	5.8:1	30/400 40/280	65/440 80/330	51.6in	8BB (1MBB 1CRBB 5BB) + 1RB	65LB
CERTATESWG5000-XH	13.6oz	6.2:1	14/280	30/230	41.1in	9CCRBB, 1BB, 1RB	33.1LB
CERTATESWG6000-XH	13.2oz	6.2:1	14/340	30/320	43.4in	9CCRBB, 1BB, 1RB	33.1LB
